Introducing the new NWSD Scattergun C2 Modified chassis systems for SCX!!
After designing the Scattergun C1 I was asked by the NWSD team drivers to produce a forward skid style chassis. I went work experimenting with different setups.
I decided ultimately to take the proven Scattergun C1 and make this the basis for the new platform.
I started by moving the skid toward 1.5” (38mm) on the chassis establishing a forward bias for weight and excellent break over.
Both the Scattergun modified C1 and C2 chassis utilize the same offset links that are readily available from HardCore Rc!
They also share the same servo mounts, skids, braces and Forward motor mounts for build simplicity!
C2 skid has a 5 degree rake.
The Scattergun C2 modified chassis require 80mm or similar shocks.

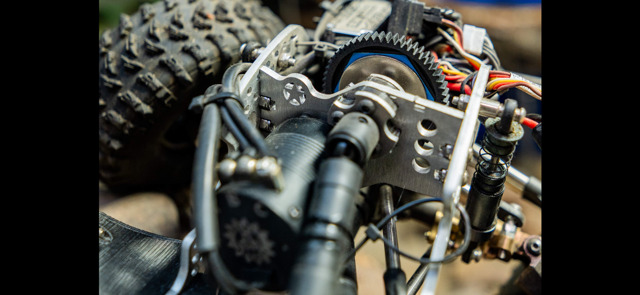

Speaking of forward motor mounts-
The C2 Modified chassis have a choice of FMM’s optimized for center diff front axles or offset diff axles.
The center diff FMM can even fit a full-size 540 motor!

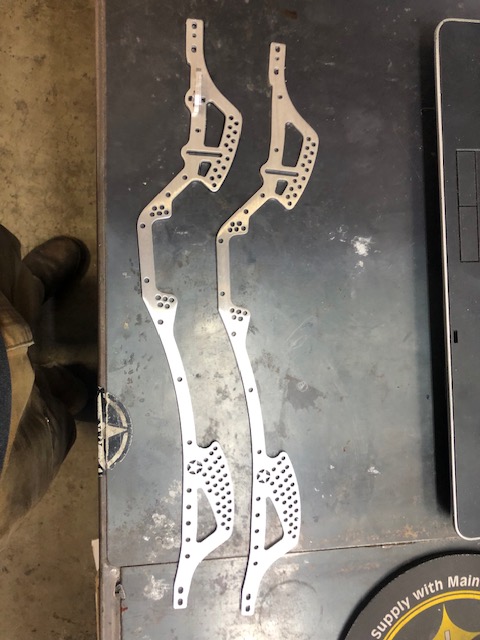

-Chassis laser cut from 6061 with panhard mount
-Vertical Rc dual servo mount
-skid with axial 3 gear mirrored pattern
FORWARD MOTOR MOUNT NOT INLCUDED
Forward motor mount for Offset front diff $85
forward motor mount for center front diff $85
TGH creeper T case $99.99
